slow juicer motor

Working Voltage: 24-310VDC
Output Speed: 35-60rpm (adjustable as needed)
Output Torque: 150-230 kg·cm, high torque
Lifespan: High voltage 300-500 hours, low voltage 1000-1500 hours
Gear Reduction Ratio: 1:86.5
Insulation Class: Class B/F
Applications: Juicer / Slow Juicer / Retractable Door

Back to List Inquire Now

Product Introduction

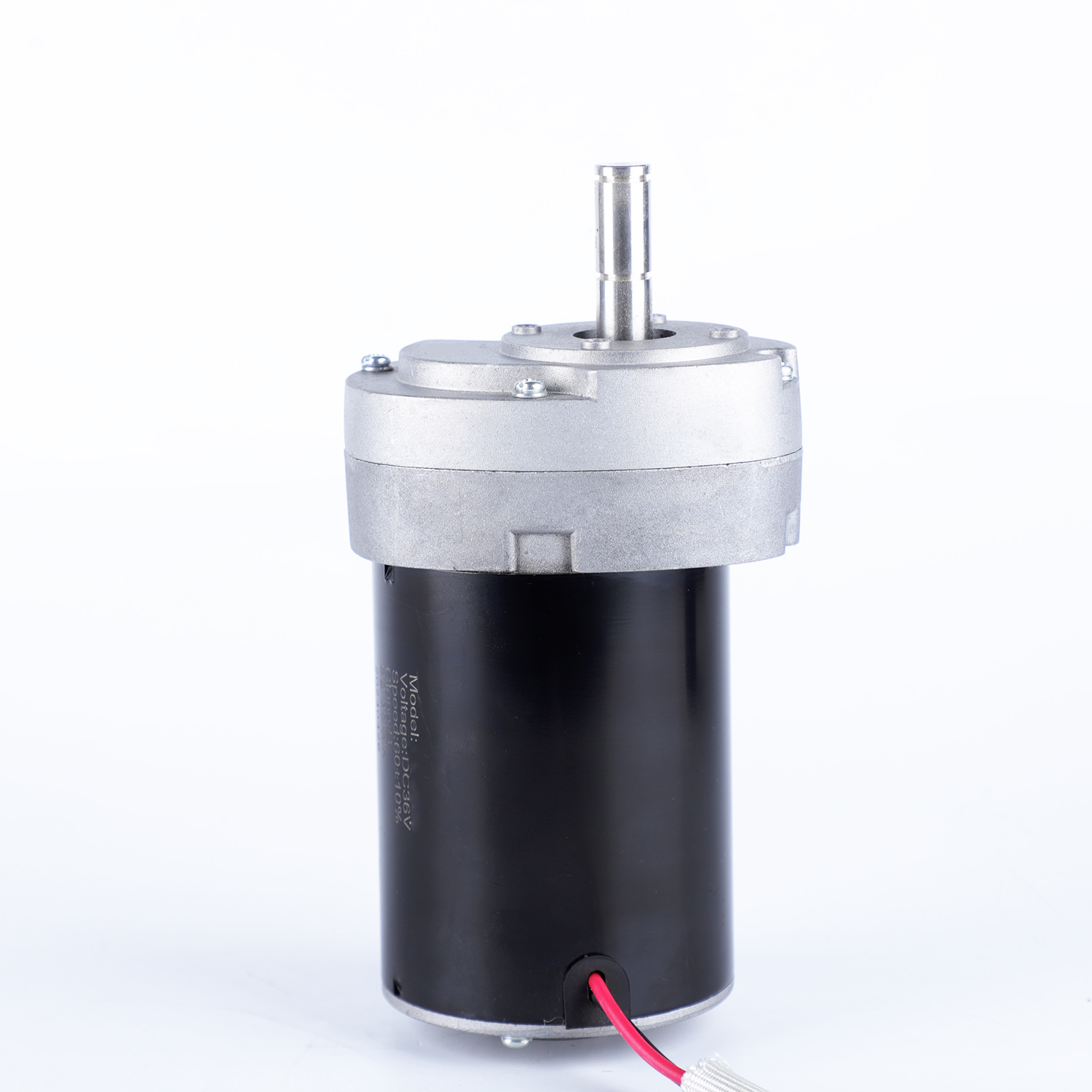

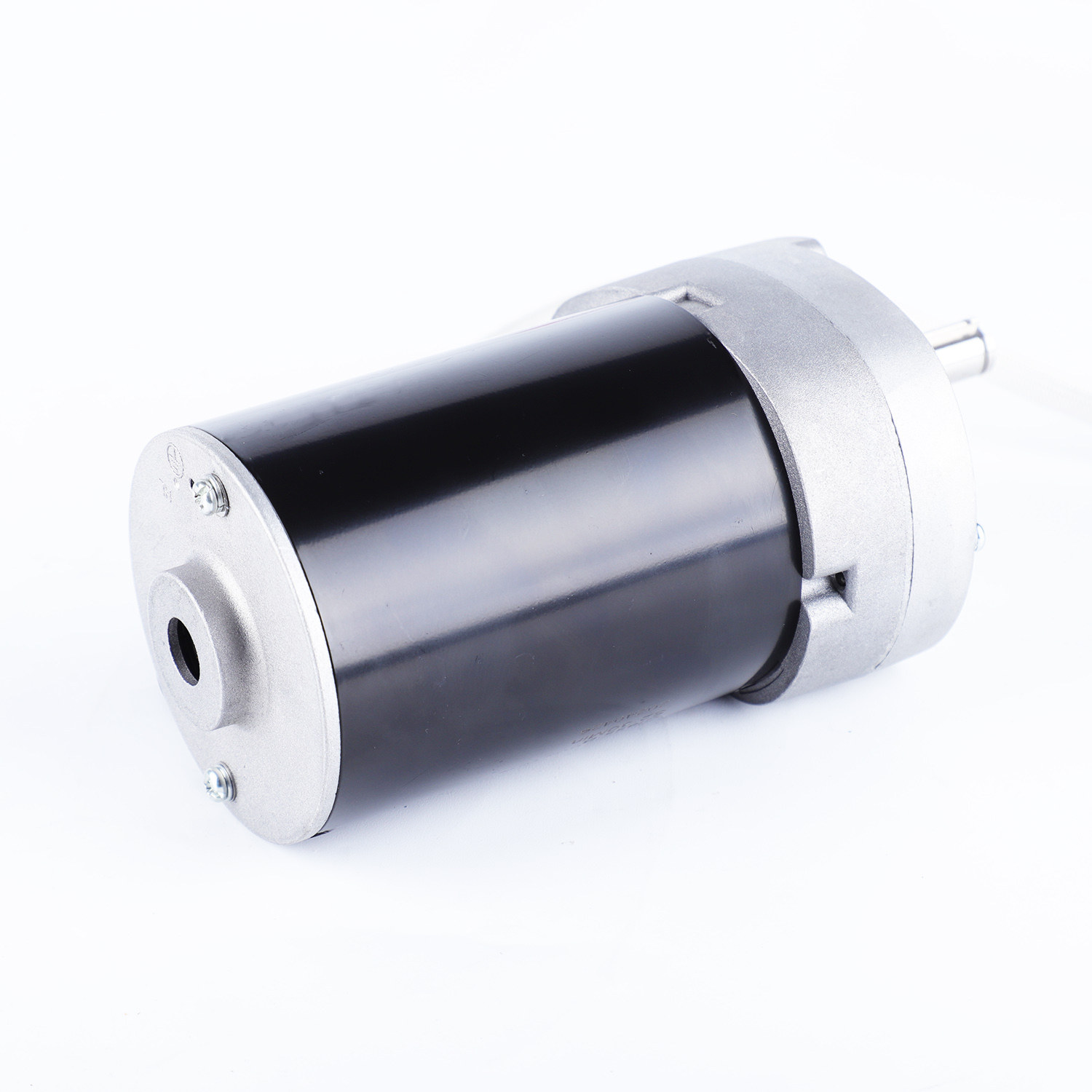

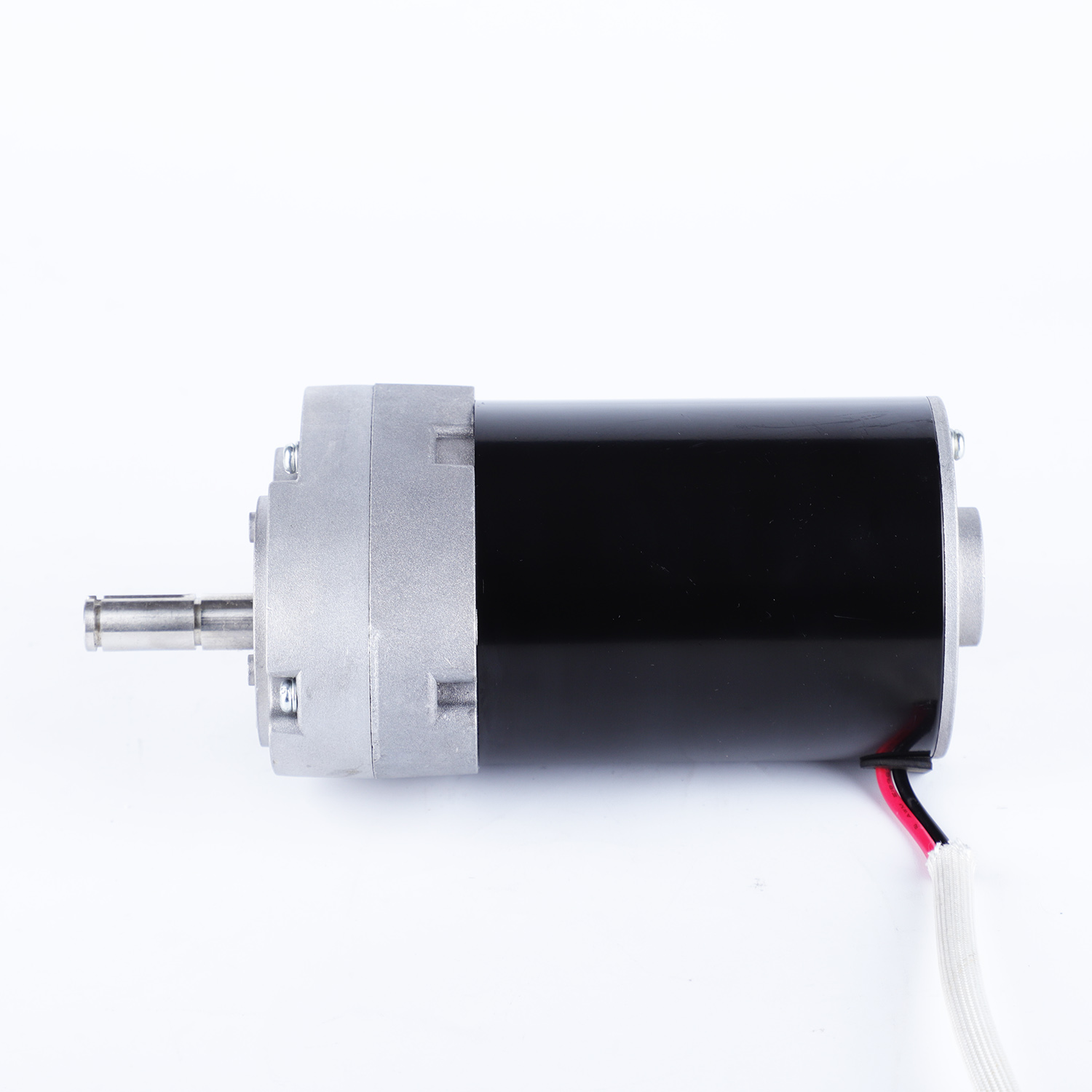

The Honlite DC5330 G eccentric gearbox DC gear motor is made up of a permanent magnet brushed DC motor and an eccentric gear reducer. Gear structure: three-stage planetary machined metal gears, resistant to stalling and tooth breakage. Protection: built-in thermostat protection, automatically cuts off power when temperature exceeds 120°C. Insulation design: output shaft is isolated from live parts, and it has CCC certification for home appliance safety. It’s a high-torque reduction motor specially designed for kitchen appliances. Suitable for juicers, slow juice extractors, coffee grinders, blenders, dough mixers, automatic doors, lifts, and more.

Outline Drawings
