Permanent magnet brushless DC motor

Outer diameter: 60mm
Power: 150-400W
Speed: 800-3000rpm, supports adjustable speed
Torque: 15-20kg・cm, strong anti-stall capability
Efficiency: 70-85%, low heat generation
Lifespan: 15,000-30,000 hours, brushless and maintenance-free
Noise: ≤55dB at 1 meter, low vibration and noise during grinding
Insulation class: B/F, built-in overheat protection
Materials: Supports CE, RoHS, UL certification
Others: Can add Hall position sensor, can be paired with a magnetic driver


Product Introduction

The BLDC6068 is a three-phase brushless DC motor developed by Honltie specifically for high-end home and commercial coffee grinders and fully automatic coffee machines. It has an outer diameter of 60mm and a body length of 115mm, making it a mainstream brushless power solution for high-end grinding equipment. Honltie also provides customers with a stable and reliable high-power 400W brushless motor driver. Catering to high-end customer needs for high torque, low noise, long lifespan, and stable performance, the existing molds and drivers are easy to use, simple to wire, and run reliably. All materials for the BLDC6068 brushless DC motor can come with UL certification numbers, and it also supports CE and RoHS certifications.

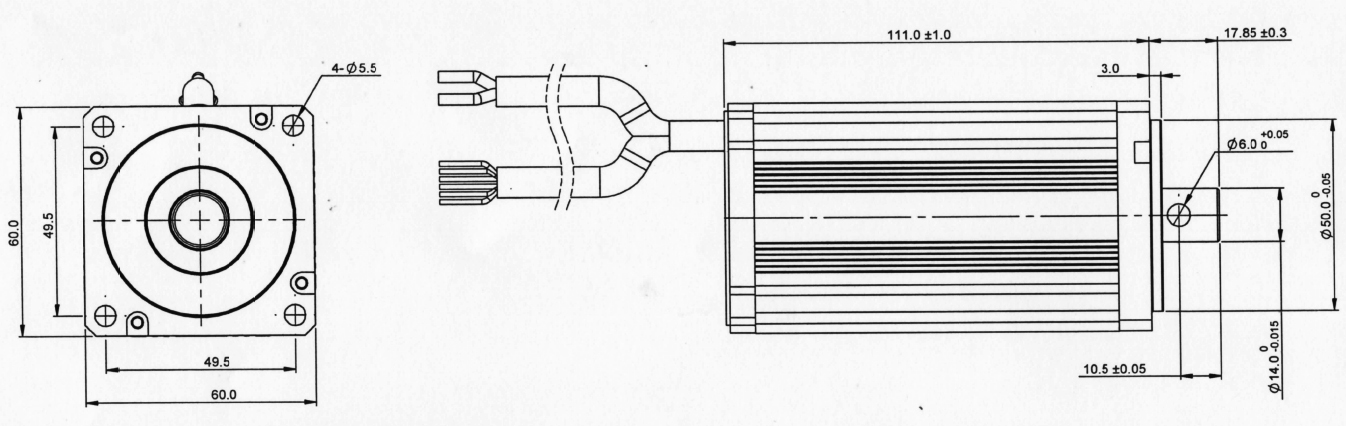

Outline Drawings

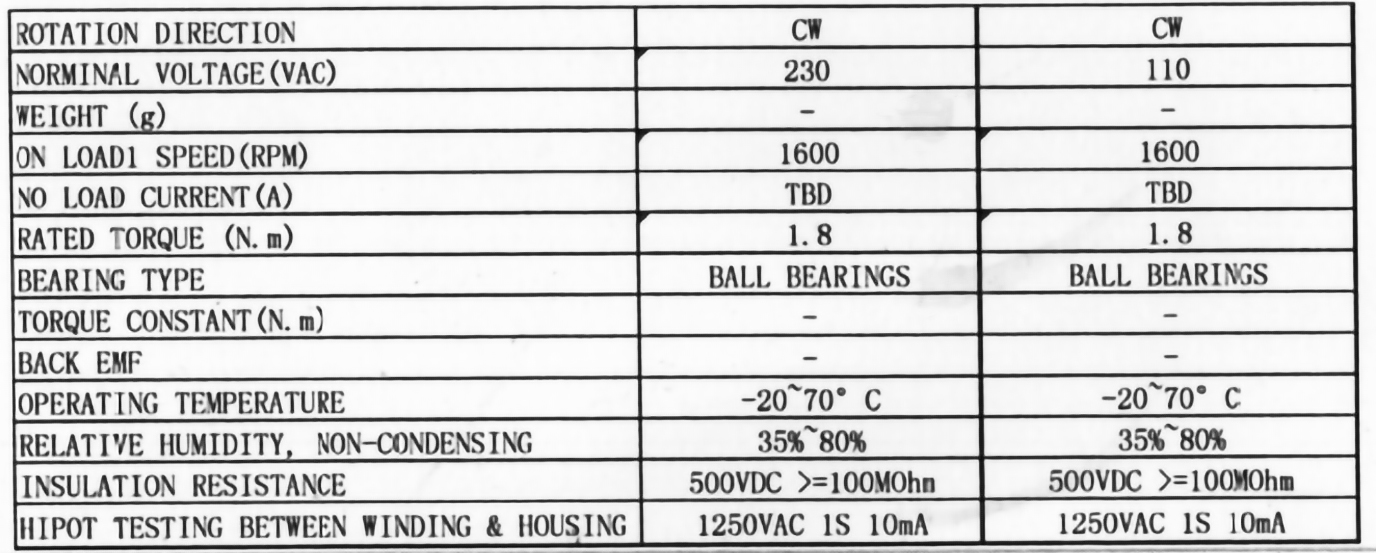

Specifications


Certificate
Hot Products
Application
Download
